Description

Color: Carbon Black – A with Super Red Switch

Features:

• Upgraded Q11 Mechanical Keyboard with Pre-lubed Exclusive Super Red Switch, it adopts a new mold with unparalleled precision. Every switch is tested for pro-grade quality and has a lifespan of up to 50 million clicks.Its new light affection structure on its transparent top housing also ensures high light transmittance and a more consistent, brighter backlight effect
• With a split layout, the Q11 allows you to position each side where you feel most sensible and ergonomic. You can also use it as a non-split keyboard by linking the two halves with a bridge cable
• With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more
• OSA Profile Double-shot PBT Keycaps provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out
• South-facing RGB LED Lights designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard
• The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches

Package Dimensions: 62x402x1710

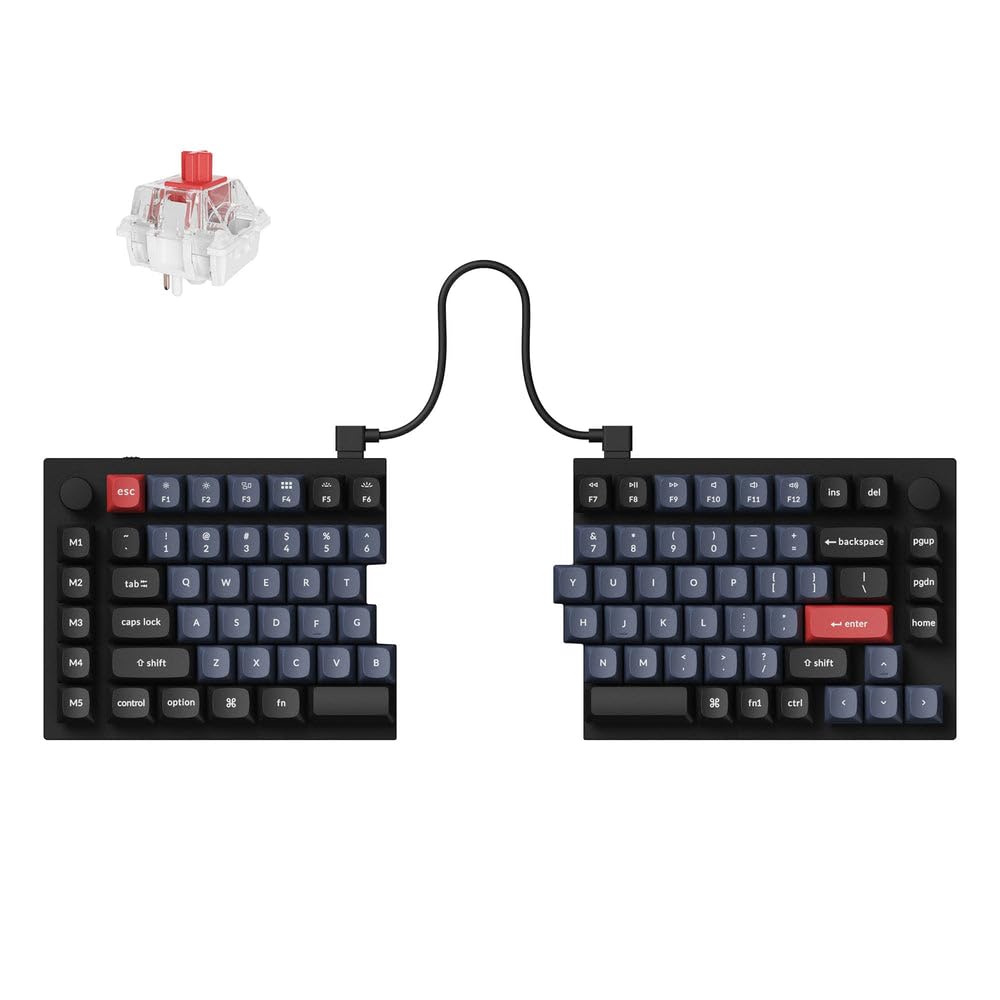

Q11 QMK Custom Mechanical Keyboard with Super Red Switch

Q11
Coming in a 75% Layout and a split design, the Q11 helps you to explore the angles and positions that fit you the best. With its full metal body, QMK/VIA support, and unique design, the Q11 is ideal for fulfilling your typing needs!

Split Design
With a split layout, the Q11 allows you to position each side where you feel most sensible and ergonomic. You can also use it as a non-split keyboard by linking the two halves with a bridge cable.

Pre-lubed Exclusive Super Red Switch
Our exclusive Super switch adopts a new mold with unparalleled precision. Every switch is tested for pro-grade quality and has a lifespan of up to 50 million clicks, providing great reliability and high performance for long typing sessions. Its new light affection structure on its transparent top housing also ensures high light transmittance and a more consistent, brighter backlight effect.

Specifications
Width: 134 mm
Length: 345 mm
Front Height: 9.8 mm (without keycaps)
Back Height: 16.3 mm (without keycaps)
Feet Height: 1.5 mm
Angle: 2.8°
Weight: 1186 ± 10 g (Fully Assembled Version)
Polling Rate: 1000 Hz
Stabs: Screw-in PCB stabs
Keycaps: Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
MCU: Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
Switches: Super Red
Backlight: South-facing RGB LED
Switch Support: Hot-swappable (5 pin & 3 pin)
Connectivity: Type-C wired
Cable: Type-C cable + Type-A to Type-C adapter
Operating Environment: -10℃ to 50℃
